Premium Print Heads for Digital Textile Printing Machines
Digital Textile PrintingPremium FabricsWater-Based InksMachine Spare PartsVibrant ColoursSharp Detailing
Digital Textile PrintingPremium FabricsWater-Based InksMachine Spare PartsVibrant ColoursSharp Detailing
Print Head
Rangoli Fab Studio® offers premium-quality print heads designed to deliver exceptional precision, colour accuracy, and reliable performance in digital textile printing machines. As one of the most critical components of the printing system, the print head ensures accurate ink deposition, producing sharp details, smooth gradients, and vibrant colours across every print. Our print heads are sourced to meet demanding production requirements while maintaining outstanding printing consistency.
Built for high-speed industrial applications, our print heads support stable operation, excellent print quality, and long-lasting performance. Whether replacing an existing print head or upgrading your printing equipment, we provide dependable solutions that help maximise productivity, minimise downtime, and maintain superior printing standards. Backed by extensive textile industry expertise, we supply genuine spare parts that support efficient and uninterrupted digital textile printing operations.
The following images are for reference purposes only. For more products specification, pricing, availability, or expert assistance, get in touch with our team.
Discover our complete range of premium print heads designed for professional digital textile printing applications. We offer reliable print heads compatible with leading printing systems, delivering exceptional print precision, consistent ink distribution, sharp image quality, and dependable long-term performance. Whether for production upgrades, replacements, or new installations, our print head solutions help ensure smooth operation and outstanding printing results across a wide range of textile printing requirements.
Rangoli Fab Studio® offers the genuine Kyocera
KJ4B-EX600, popularly known as the Katana Head, engineered for high-speed, high-precision
aqueous inkjet printing. With 2,656 nozzles delivering a 108.33 mm print width, this printhead
is built to sustain fast, consistent production output while maintaining sharp detail and
accurate ink placement across every pass.
Operating at a 30 kHz jetting frequency with a print speed of up to 76.2 m/min, the KJ4B-EX600
offers a variable drop volume from 5 pL to 16 pL, giving precise control over fine detailing and
solid fills alike. Designed for aqueous ink at a viscosity range of 5-6 mPa·s, each unit sourced
by Rangoli Fab Studio is tested to deliver dependable, high-throughput performance for demanding
production environments.

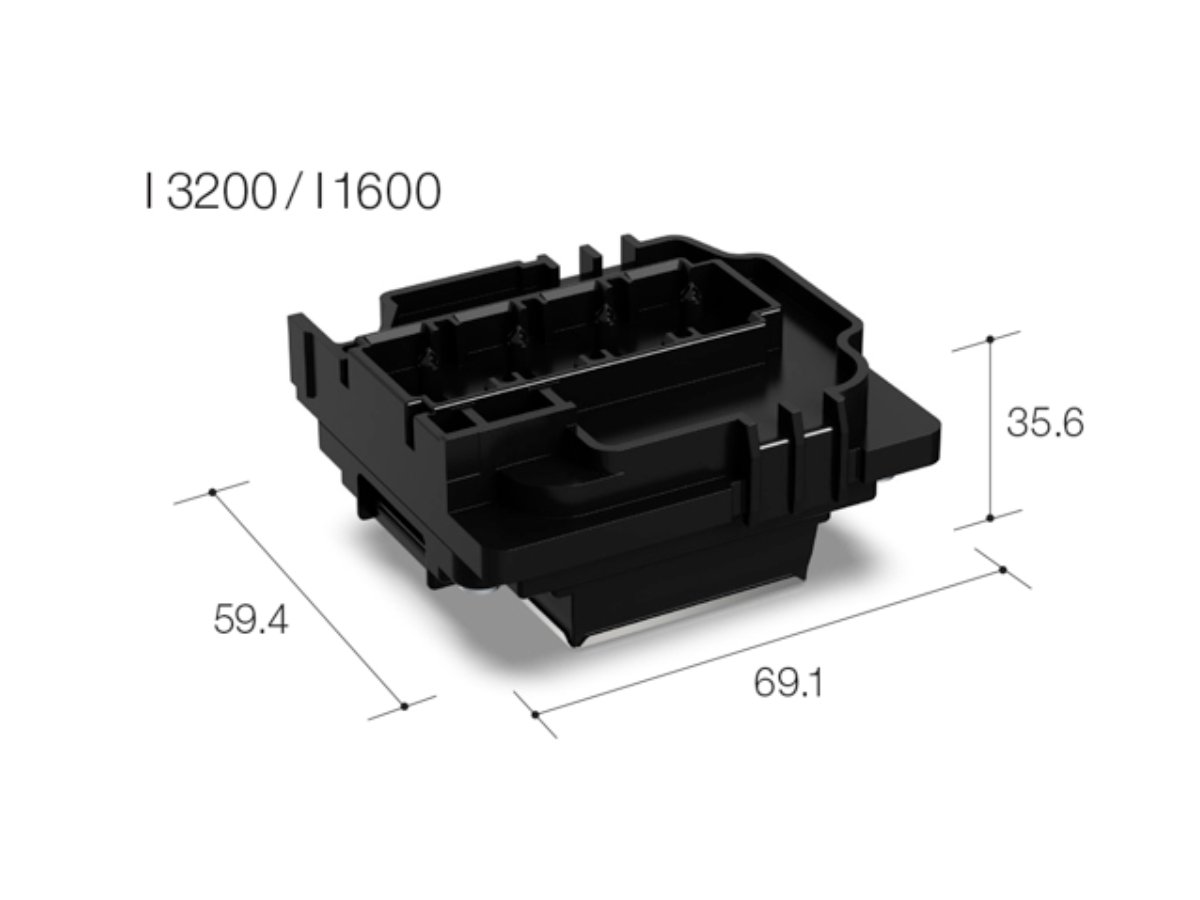

Rangoli Fab Studio® offers the genuine Epson I3200
PrecisionCore MicroTFP printhead — a high-precision component trusted across digital textile
printing machines for its exceptional accuracy, colour consistency, and reliable performance.

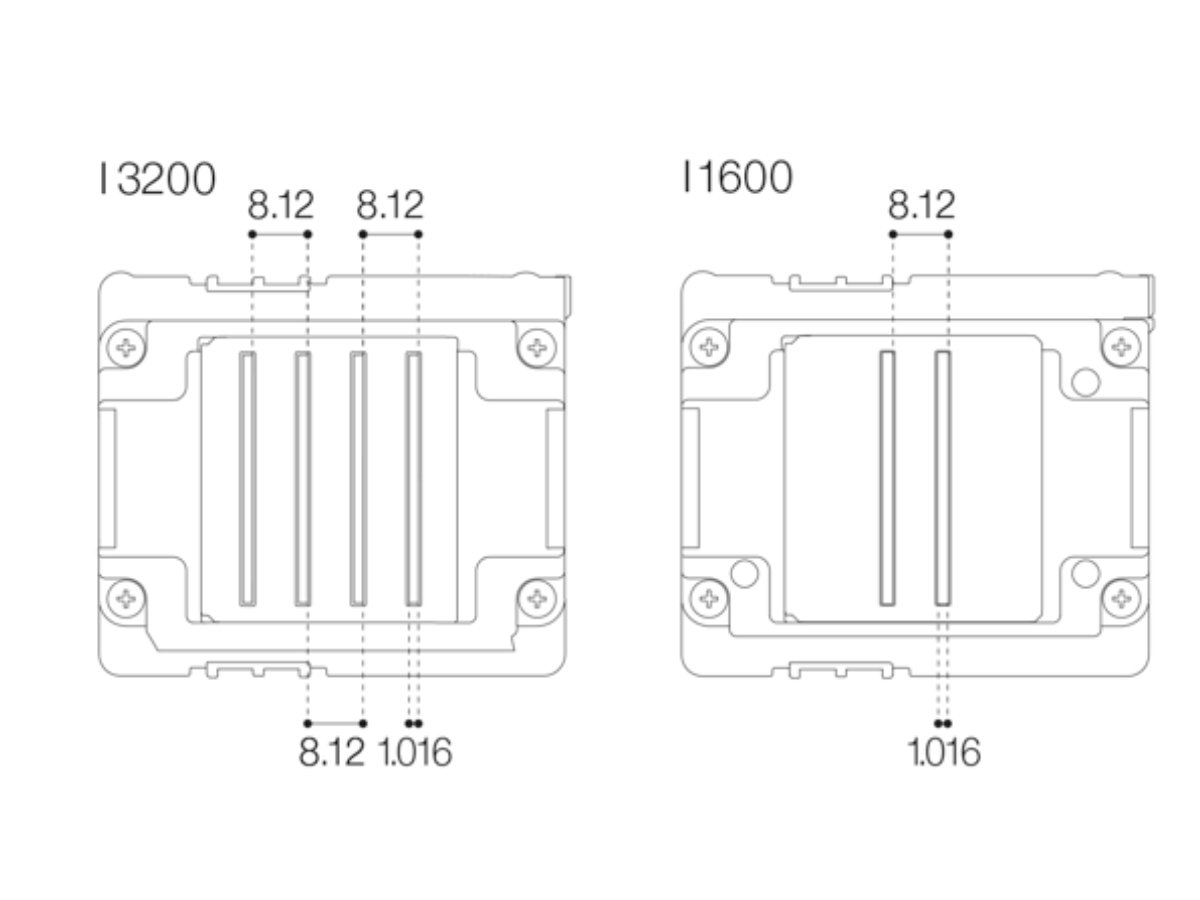

Built with 3200 nozzles arranged across 8 rows at a 1/300 inch pitch, the I3200 delivers sharp
detailing, smooth tonal gradients, and vibrant, consistent colour output print after print.
Available in UV, Eco Solvent, and Aqueous variants, this printhead supports variable droplet
sizes from as fine as 3.8 pl up to 12.5 pl, giving printers precise control over image quality
and ink laydown across a wide range of substrates. Each unit sourced by Rangoli Fab Studio is
tested to meet demanding production requirements, ensuring dependable performance and consistent
print quality across high-volume textile printing operations.
Droplet — 4-level grey3.8, 6.2, 9.3 pl at 21.6 kHz
Viscosity range5-7 mPa·s
PositioningReference hole
I3200(4)-E1 Eco Solvent
Ink typeEco Solvent
TypePrecisionCore MicroTFP printhead

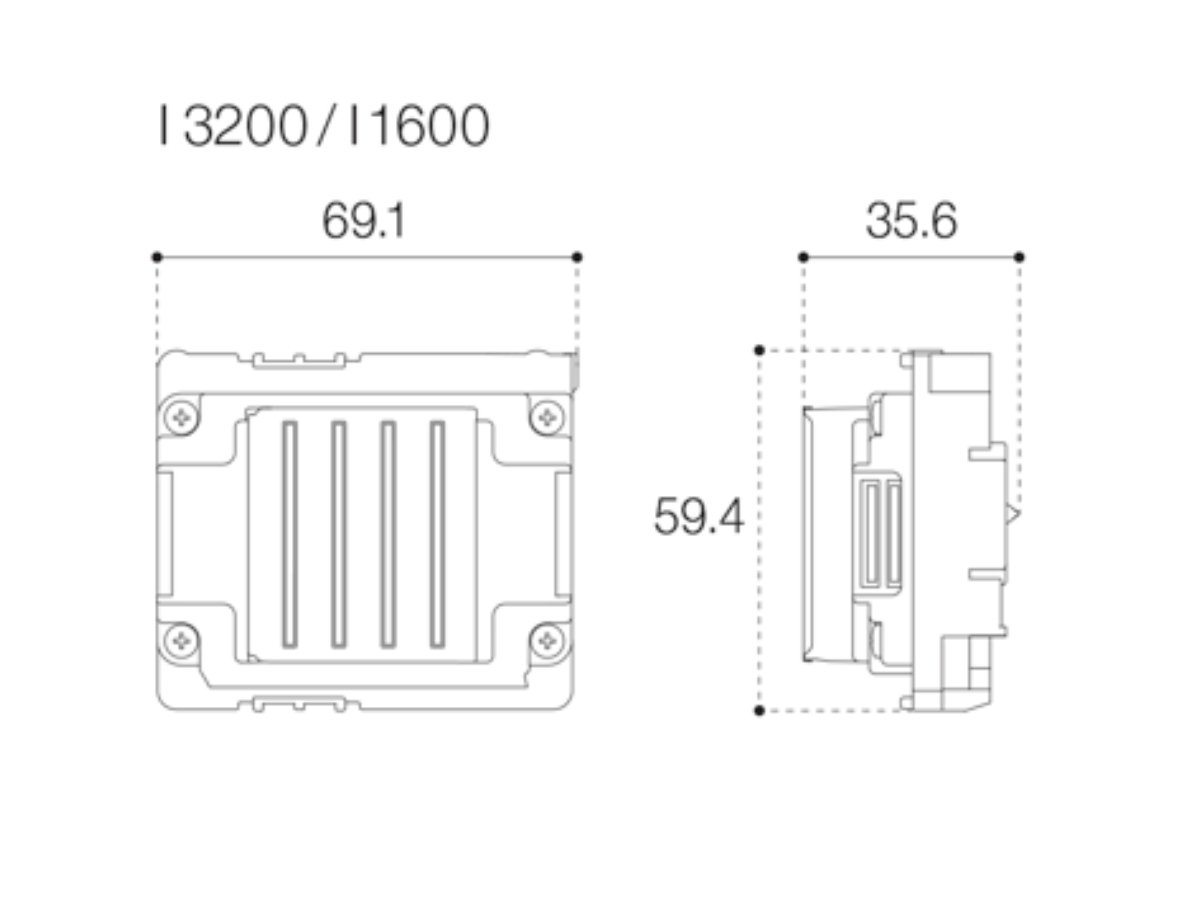

Dimensions (W×D×H)69.1 x 59.4 x 35.6 mm
Weight82 g
Number of nozzle3200
Nozzle pitch/row1/300 inch
Nozzle rows8 rows
Nozzle Resolution300 npi/row, 600 npi/2 rows
Max. colour inks4 colours
Effective print width33.8 mm (1.33 in)
Droplet — Binary6 pl at 43.2 kHz
Droplet — 3-level grey6.3, 12.3 pl at 21.6 kHz
Droplet — 4-level grey3.8, 5.5, 8.7 pl at 21.6 kHz
Viscosity range3-4 mPa·s
PositioningReference hole
I3200(4)-A1 Aqueous
Ink typeAqueous
TypePrecisionCore MicroTFP printhead
Dimensions (W×D×H)69.1 x 59.4 x 35.6 mm
Weight82 g
Number of nozzle3200
Nozzle pitch/row1/300 inch
Nozzle rows8 rows
Nozzle Resolution300 npi/row, 600 npi/2 rows
Max. colour inks4 colours
Effective print width33.8 mm (1.33 in)
Droplet — 4-level grey3.8, 6.1, 9.4 pl at 21.6 kHz
Viscosity range—
PositioningReference hole
I1600-U1 UV
Ink typeUV
TypePrecisionCore MicroTFP printhead
Dimensions (W×D×H)69.1 x 59.4 x 35.6 mm
Weight80 g
Number of nozzle1600
Nozzle pitch/row1/300 inch
Nozzle rows4 rows
Nozzle Resolution300 npi/row, 600 npi/2 rows
Max. colour inks4 colours
Effective print width33.8 mm (1.33 in)
Droplet — Binary5 pl at 43.2 kHz
Droplet — 3-level grey6, 12.5 pl at 21.6 kHz
Droplet — 4-level grey3.8, 6.2, 9.3 pl at 21.6 kHz
Viscosity range5-7 mPa·s
PositioningReference hole
I1600-E1 Eco Solvent
Ink typeEco Solvent
TypePrecisionCore MicroTFP printhead
Dimensions (W×D×H)69.1 x 59.4 x 35.6 mm
Weight80 g
Number of nozzle1600
Nozzle pitch/row1/300 inch
Nozzle rows4 rows
Nozzle Resolution300 npi/row, 600 npi/2 rows
Max. colour inks4 colours
Effective print width33.8 mm (1.33 in)
Droplet — Binary6 pl at 43.2 kHz
Droplet — 3-level grey6.3, 12.3 pl at 21.6 kHz
Droplet — 4-level grey3.8, 5.5, 8.7 pl at 21.6 kHz
Viscosity range3-4 mPa·s
PositioningReference hole
I1600-A1 Aqueous
Ink typeAqueous
TypePrecisionCore MicroTFP printhead
Dimensions (W×D×H)69.1 x 59.4 x 35.6 mm
Weight80 g
Number of nozzle1600
Nozzle pitch/row1/300 inch
Nozzle rows4 rows
Nozzle Resolution300 npi/row, 600 npi/2 rows
Max. colour inks4 colours
Effective print width33.8 mm (1.33 in)
Droplet — 4-level grey3.8, 6.1, 9.4 pl at 21.6 kHz
Viscosity range—
PositioningReference hole
Note: Combining the various grey scale and the droplet size can be realized by Epson's unique waveform design.
RICOH GH2220

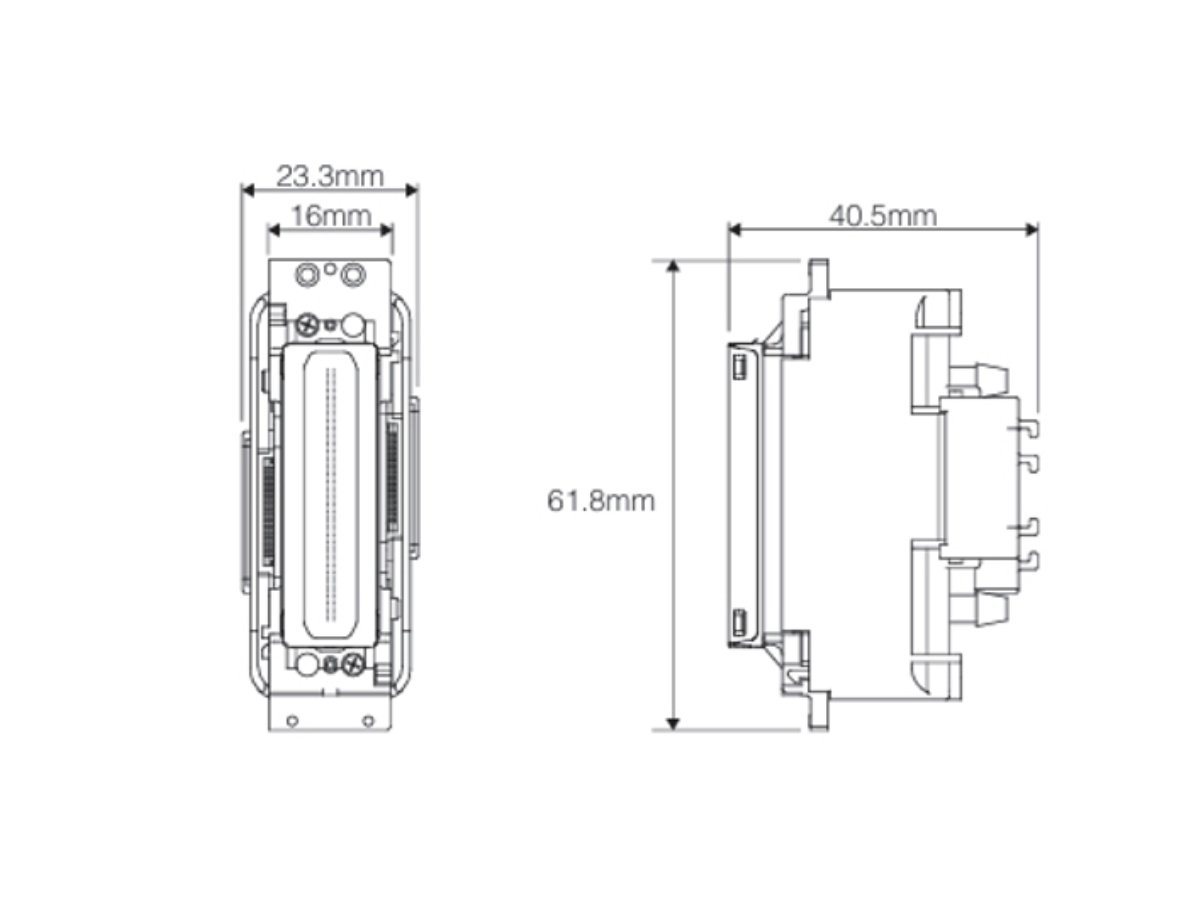

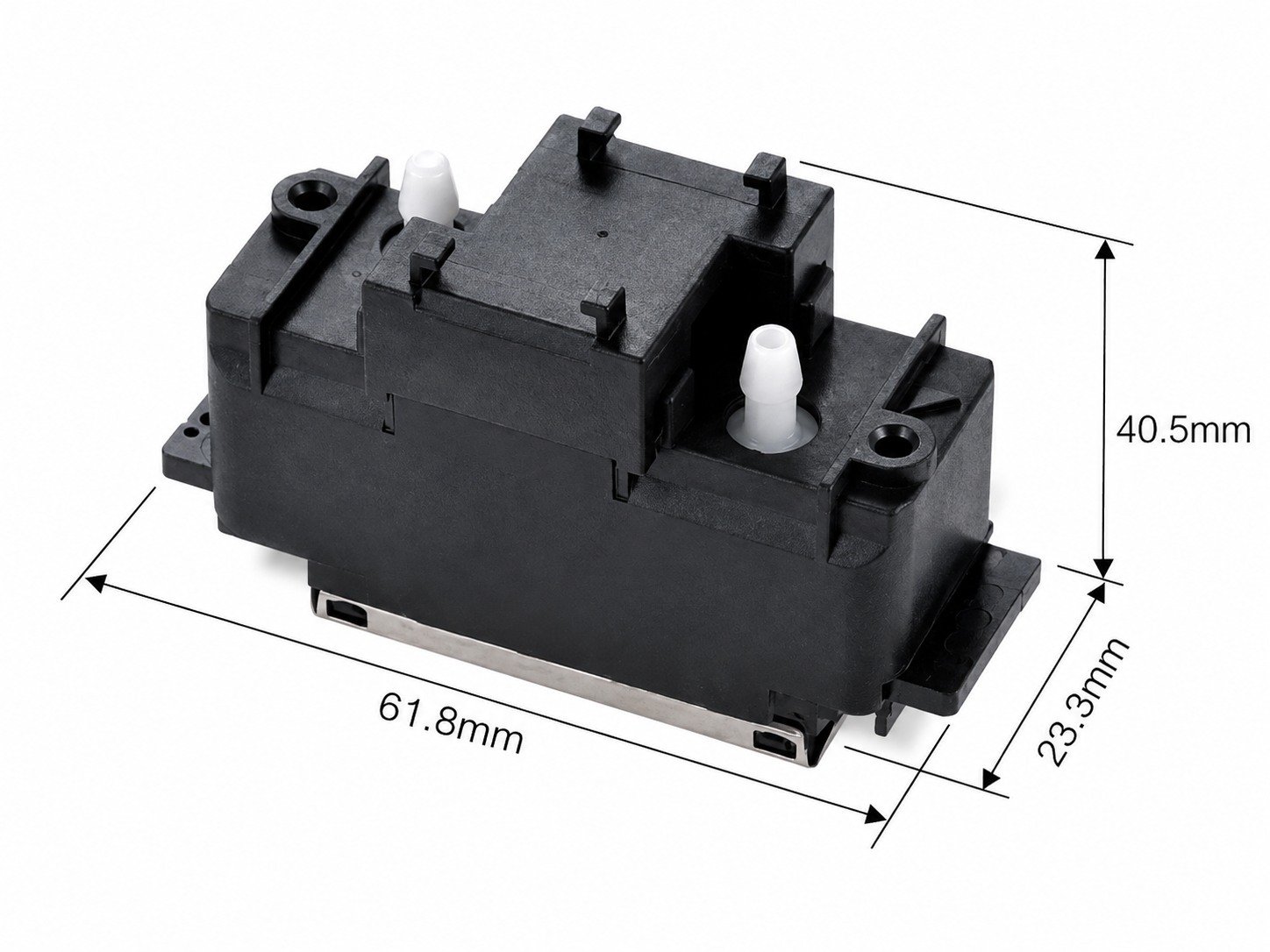

Rangoli Fab Studio® offers the genuine RICOH GH2220
printhead, built on Ricoh's silicon-based print head technology to deliver excellent cost
performance for sign graphics, textile, and coding & marking applications. Using a piston
pusher design with a metallic diaphragm plate, the GH2220 is engineered for consistent,
reliable jetting across demanding production environments.

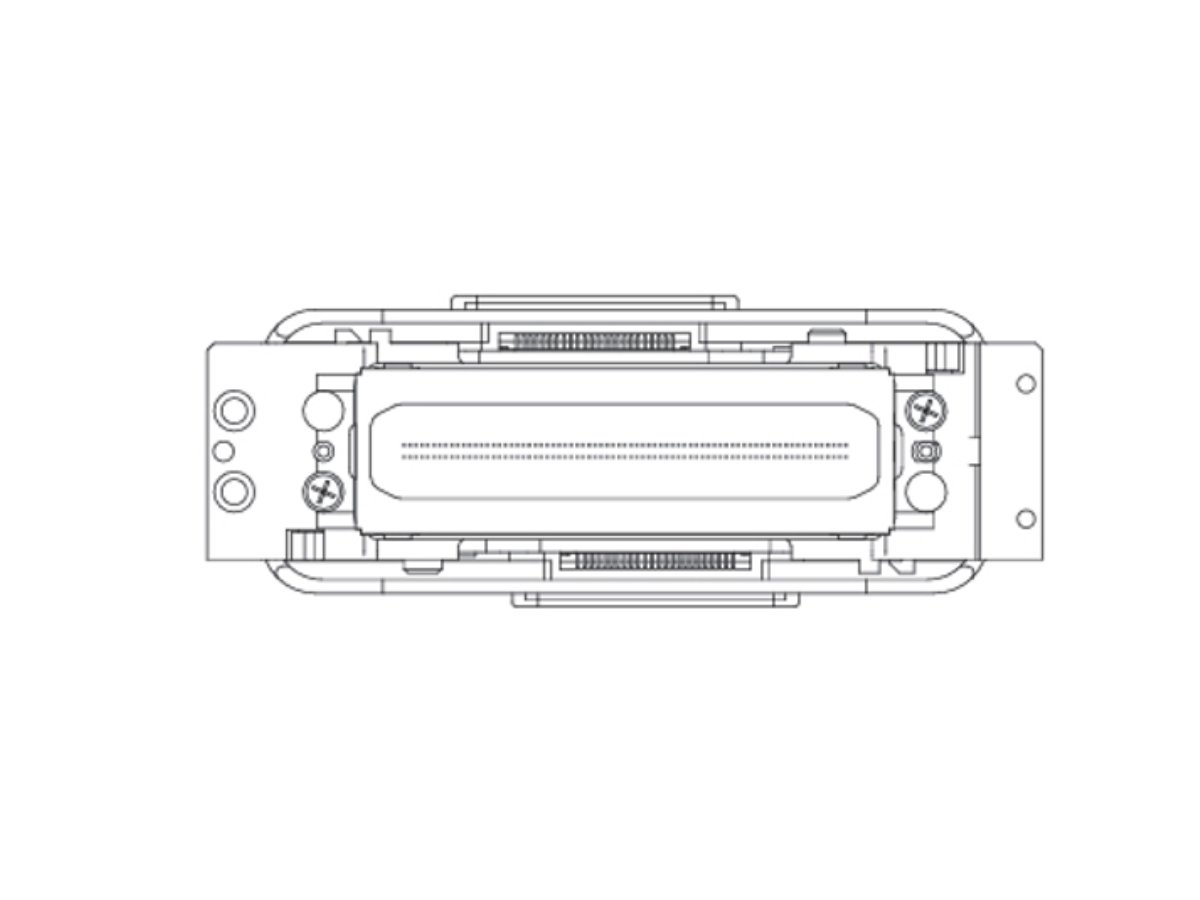

Featuring 384 nozzles with a 1/150" nozzle spacing and support for both Aqueous and Solvent
inks, the GH2220 offers a drop volume of 3-5 pl in binary mode and 21±2 pl in gray-scale mode,
with up to 4 gray levels depending on ink characteristics. Rated for 30 billion actuations per
nozzle, each unit sourced by Rangoli Fab Studio is built to deliver dependable, long-lasting
performance for high-volume printing operations.
Binary mode: 3-5 pl / Gray-scale: 21±2 pl (depending on the ink)
Viscosity range
8±0.5 mPa·s (@25°C)
Surface tension
25±5 mN/m (@23±2°C)
Maximum gray scale
4 levels (depends on ink characteristics)
Alignment mechanism
Frame-abutting
RICOH MH5320 - MH5340

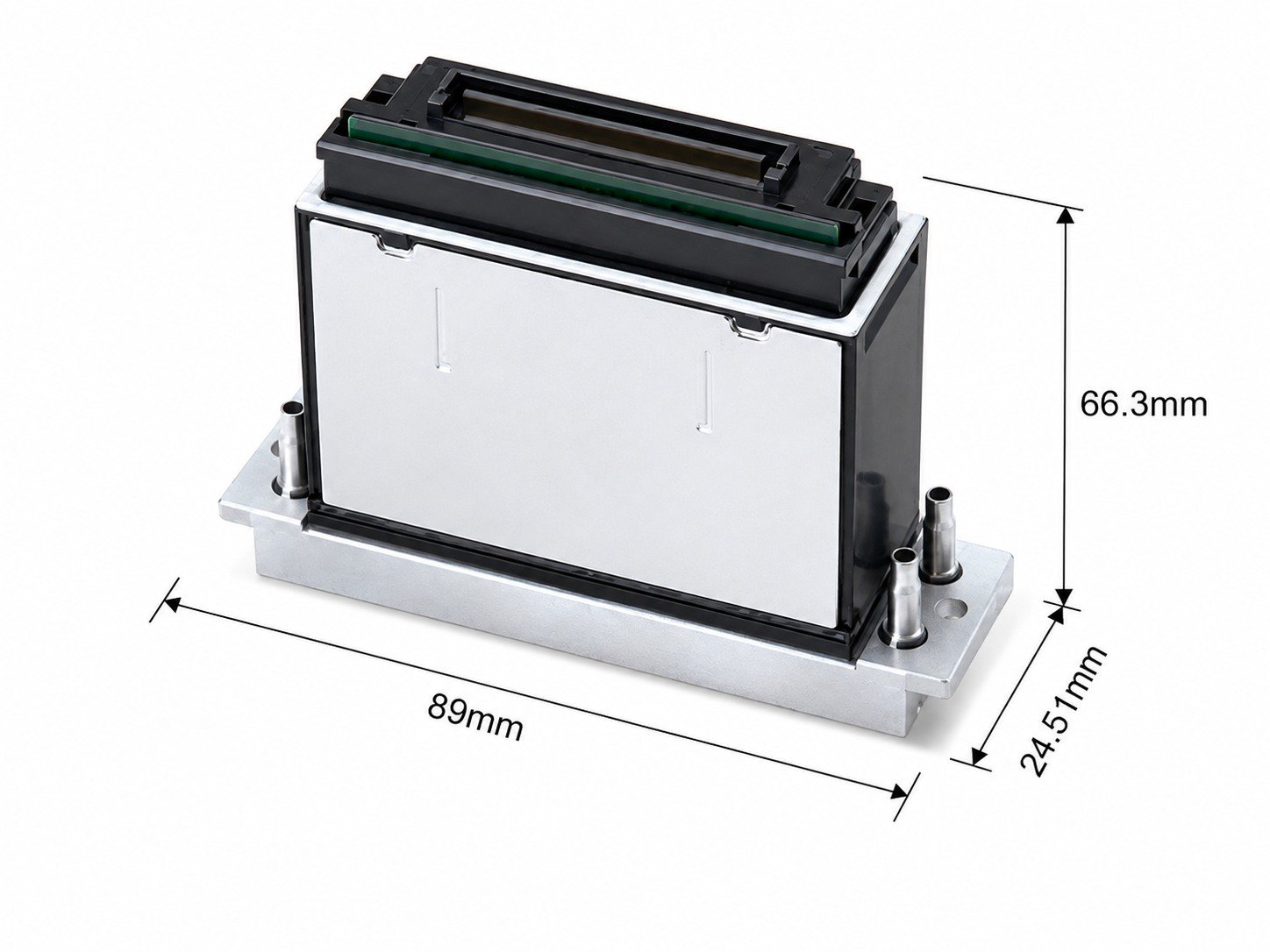

Rangoli Fab Studio® offers the genuine RICOH
MH5320/5340 printhead series, built with a durable stainless steel housing and enhanced
ink compatibility for reliable, high-definition, high-productivity printing across a wide
range of applications. Using a piston pusher design with a metallic diaphragm plate, this
series is engineered to handle demanding production environments with consistent accuracy.

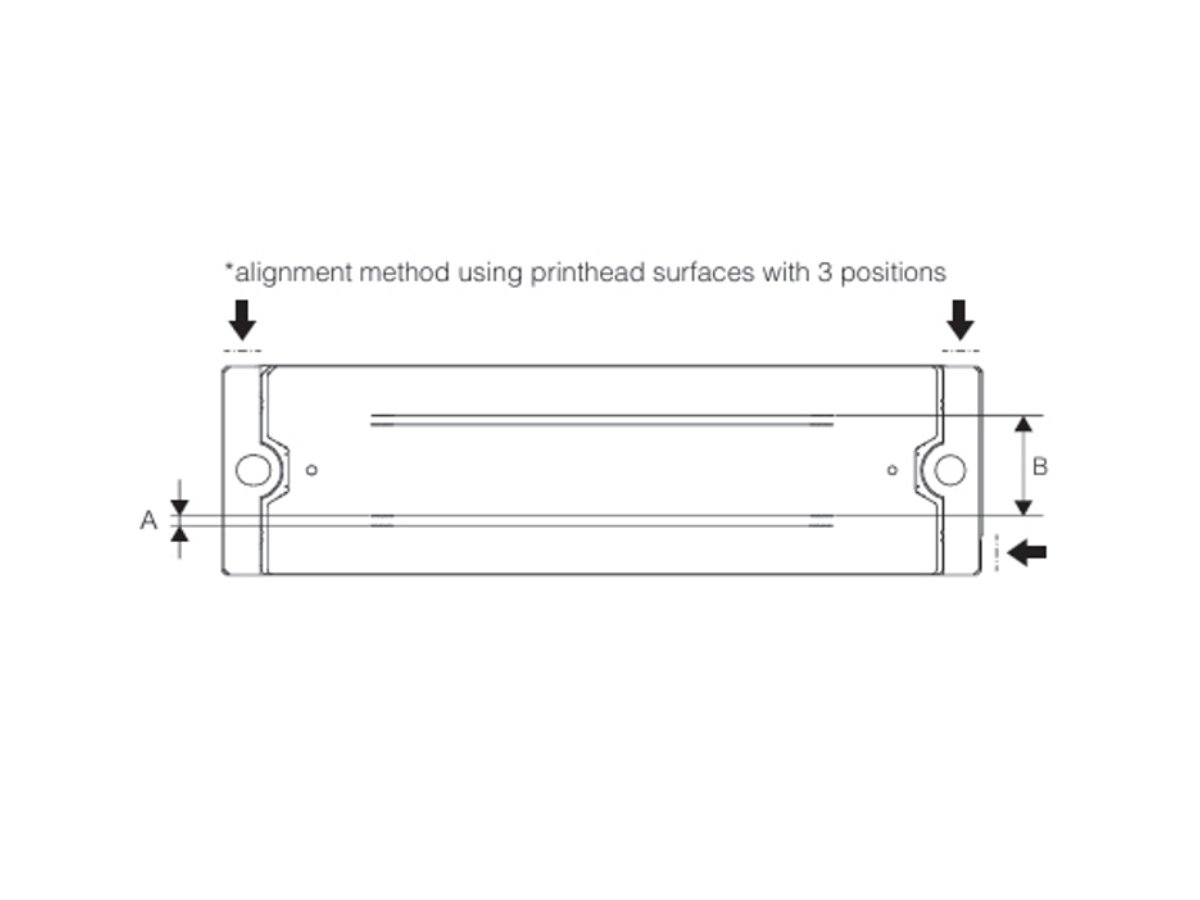

Featuring 1,280 nozzles (4 × 320 channels, staggered) at a 1/150" nozzle spacing, the
MH5320/5340 series supports UV, Solvent, Aqueous, and other ink types, with a drop volume
of 5 pl in binary mode and 5-15 pl in grey-scale mode across 4 grey levels. Built-in heater
and thermistor temperature control ensures stable performance, and each unit sourced by
Rangoli Fab Studio is tested to deliver dependable output for high-volume production.

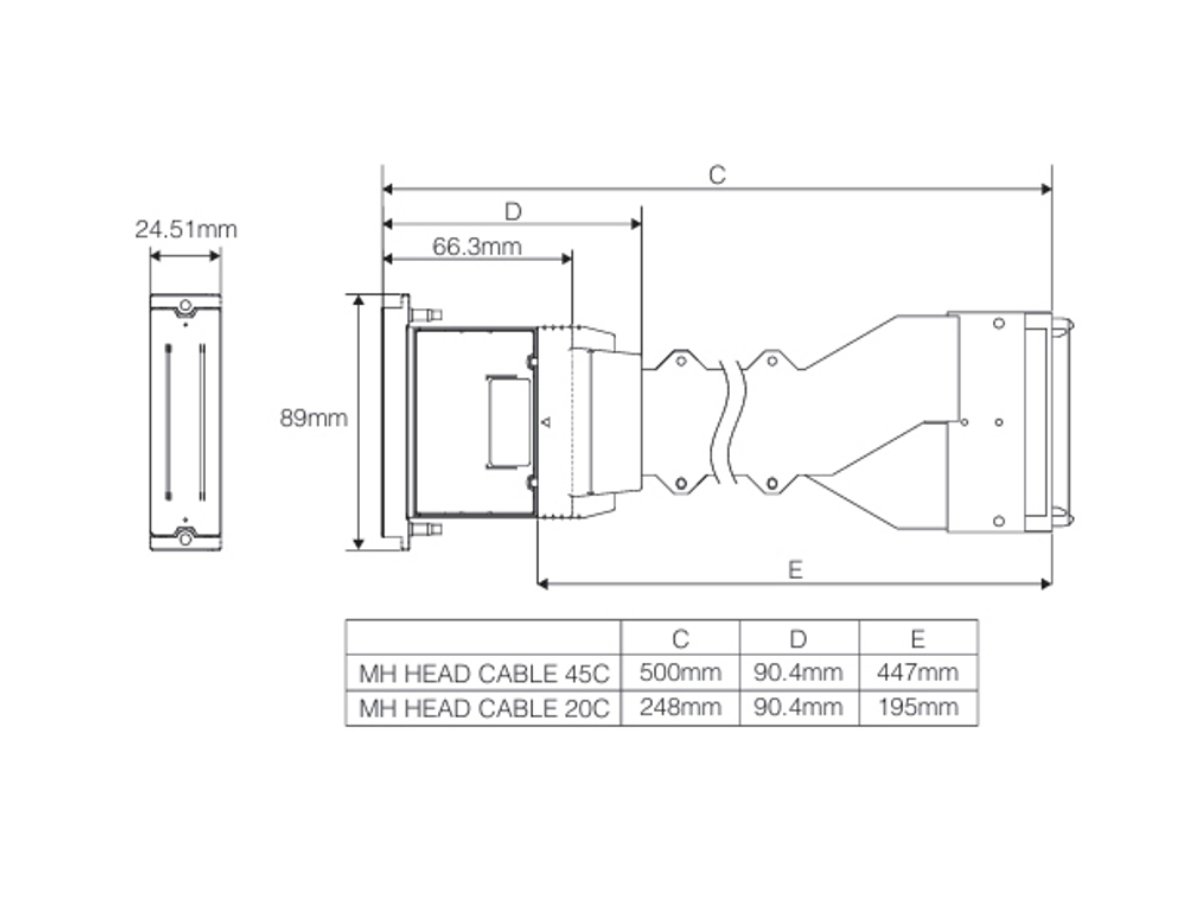

Note: Separately sold parts — MH5320 / MH5340 / MH5320 Type A dedicated cable.
